1-Air cooled after cooler for roots blower |

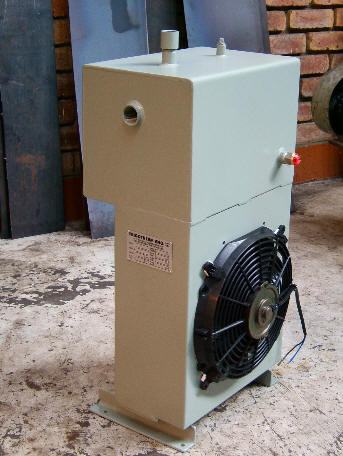

2- Air blast oil cooler with integrated hydraulic circulation pump |

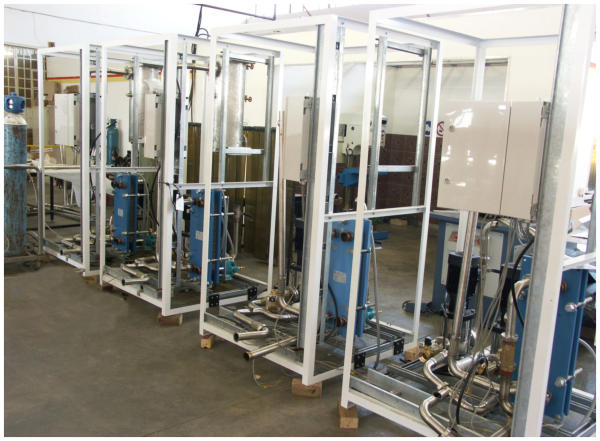

3- Eluant to eluant heat exchanger |
|
|
|

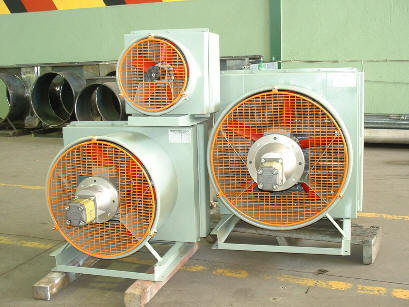

| 4- Air cooled oil cooler for lubrication system |

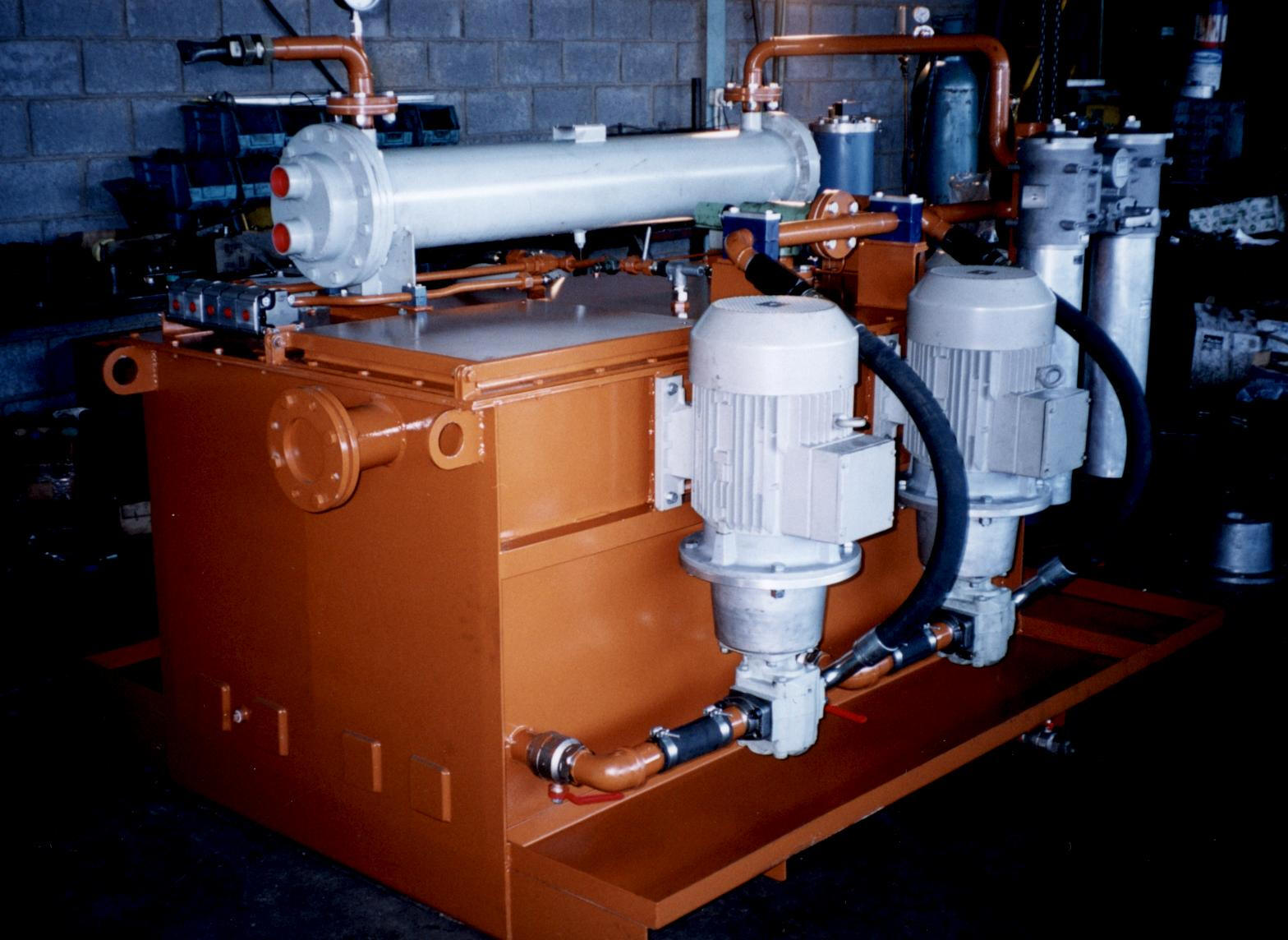

5- Water cooled oil cooler for lubrication system |

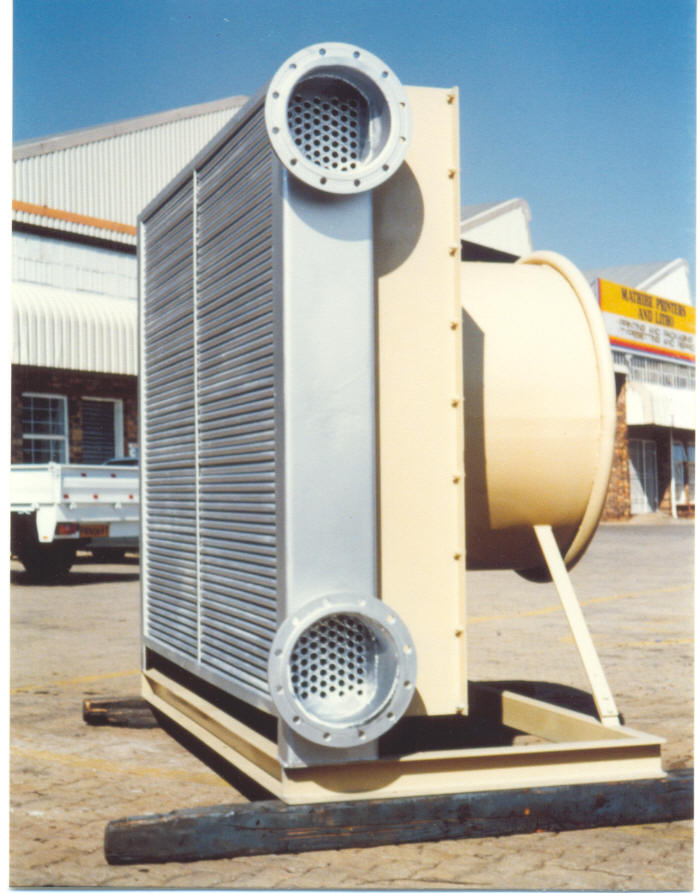

6- Air blast air after cooler |
|
|
|

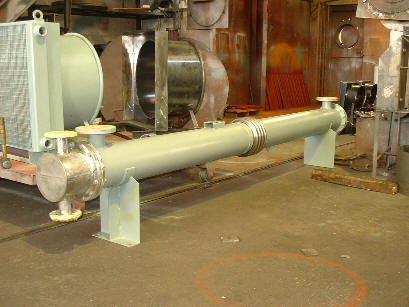

7-Thermal oil to Elaunt Shell and Tube Heat Exchanger |

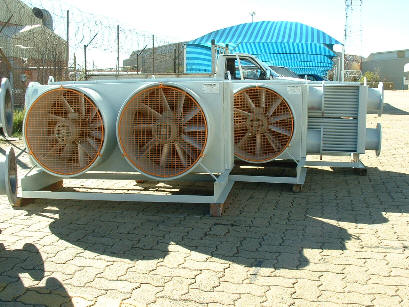

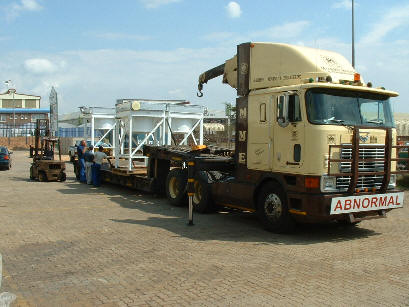

8- Delivery of air cooled air coolers |

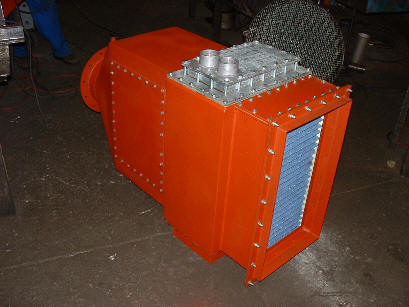

9- Water cooled nitrogen cooler with internal fan, filter and removable header |
|
|
|
| 10- Electric motor cooler with external cooling circuit |

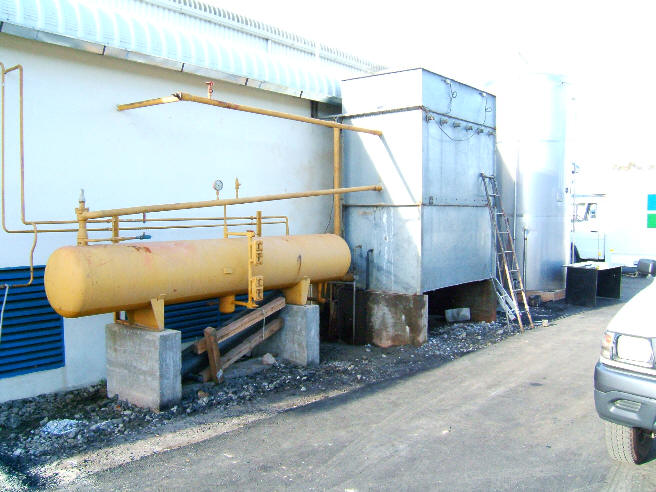

11- Evaporative condenser |

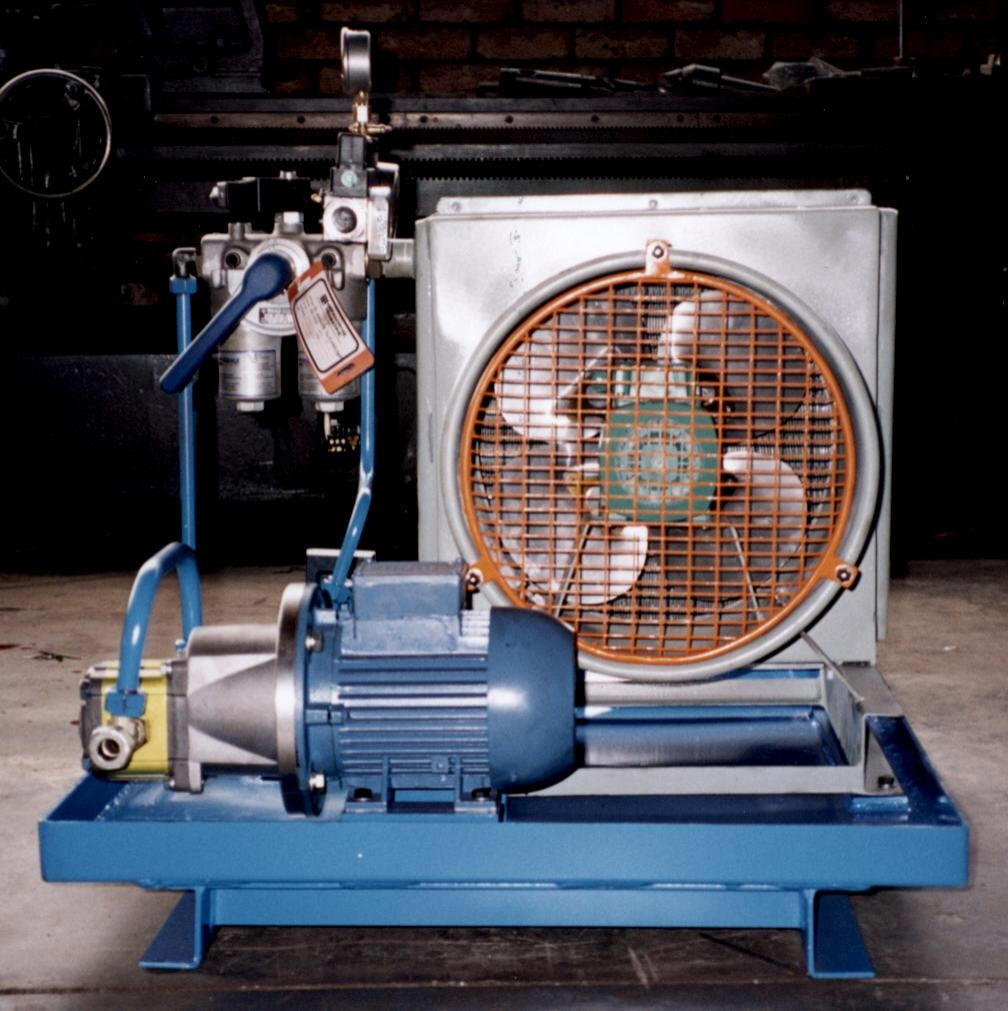

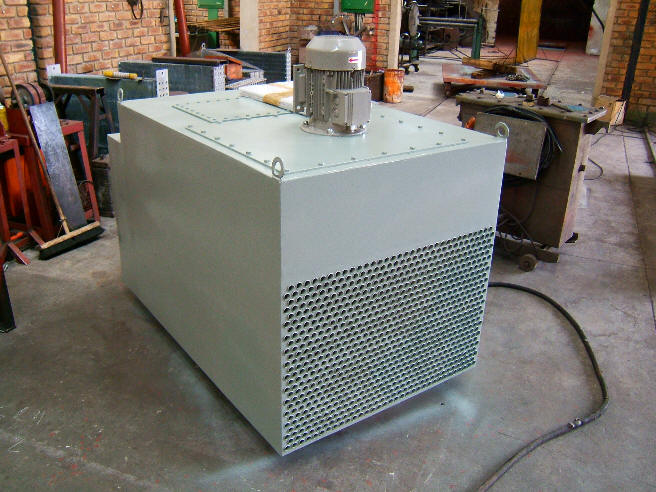

12- Mobile air blast oil cooler with reservoir and bi-metal thermostat |
|
|
|
13- Air cooled oil cooler for lubrication system |

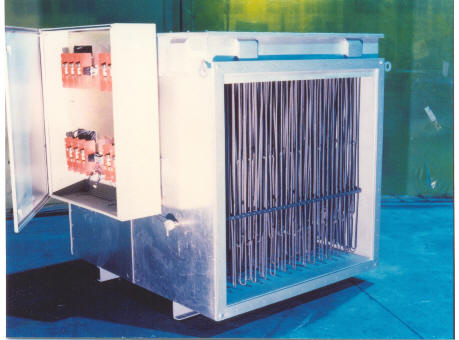

14- Electrical air heater |
15- Air blast air after cooler |
|
|
|

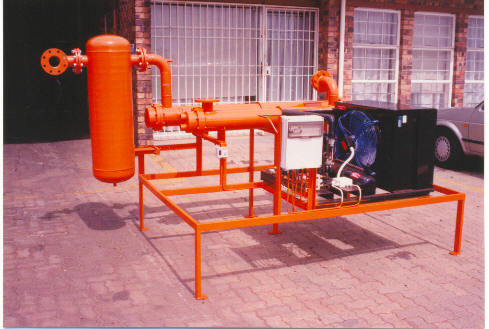

| 16-Refrigerated air dryer with water separation tank |

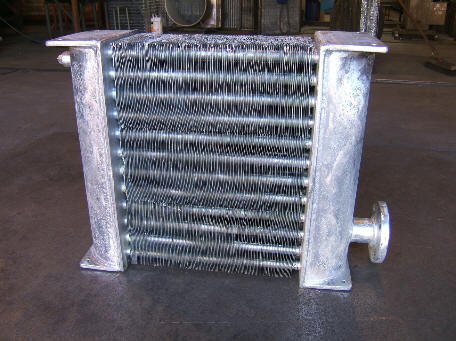

17- Steam condenser |

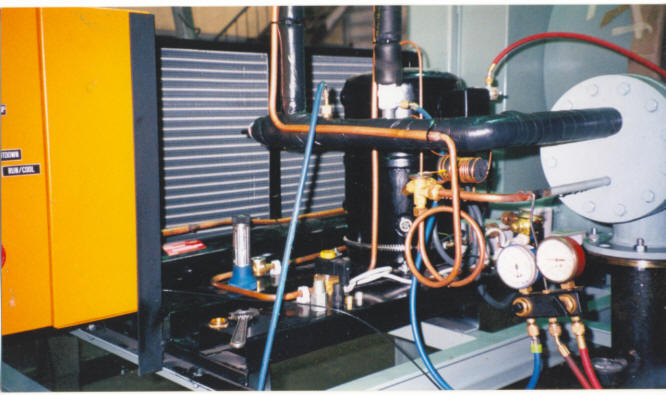

18- Refrigerated oil cooler with air blast oil pre-cooler |
|
|
|

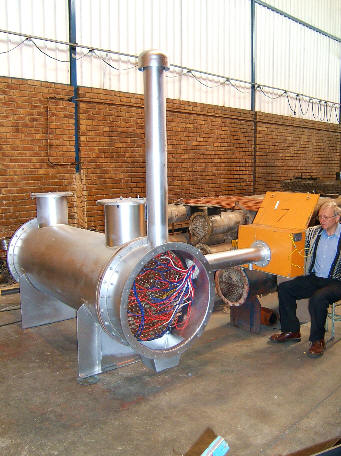

19- Electrical Air Heater |

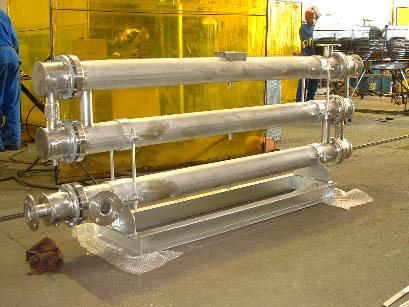

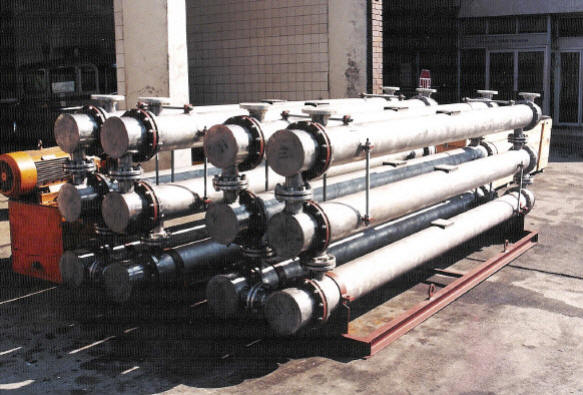

20- Eluant to eluant heat exchanger stack |
|
